Ignition Controller Huaxiao Hybrid MPPT Solar Street Light Charge Controller 12V 24V

1.0 Pieces
MOQ
Ignition Controller Huaxiao Hybrid MPPT Solar Street Light Charge Controller 12V 24V
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: HX-VWG2008SSL
Type: MPPT
Application: Lighting Controller
Work Time (h): 10000H
Max PV Power: 600W
Max PV Voltage: 12V/24V
Rate Power: 240W / 480W
Rated Voltage: 12V / 24V
Max Charge Current: 20A / 20A
Certification: CE
Warranty: 18 Months
Weight: 1.25kg
Basic Infomation
Certification: CE
Model Number: HX-VWG2008SSL
Payment & Shipping Terms
Packaging Details: Standard export carton package
Supply Ability: 10000 Piece/Pieces per Month
Product Description
Product Introduction

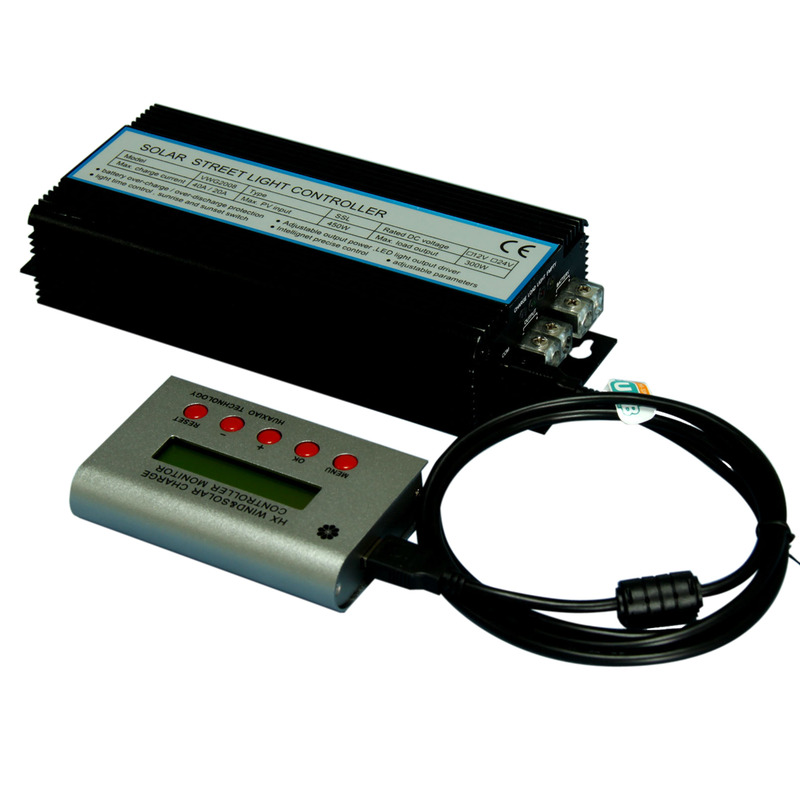

HX-VWG2008WSSL

Solar charge controller HX-VWG2008WSSL controlled with MPPT function is able to adjust the charge current and decide if to supply the loads electricity according to the voltage of battery. It has a powerful intelligent control system,safty and very
reliable.
Product Features

1, MPPT function

2, High efficiency

3, Time control and light control

4 Automatically adjust the light on/off time according to Sunrise and sunset time in different longitude and latitude.

5. Parameters are adjustable according to user’s requirements.

6. The solar controller will store information such as

Total amps generated

Total Kw hours generated

Total Amps used by load

And many more

7, Removable LCD display with input keys to allow user to alter values

8, Full protection:

Battery overcharge protection

Battery over discharge protection

Load Overload

Load short circuit

9. Used for the wind and solar street light system

Product Parameters
Item Model
HX-VWG2008 SSL
Rated voltage
12V / 24V
Max Charge current
20A / 20A
Rated power
240W / 480W
Charge mode
MPPT,constant voltage with current-limiting
Over charge protective voltage
14.4V/28.8V(Default, adjust range:12~15V / 24~30V)
Over discharge protective voltage
11.9V/23.8V/ (Default,adjustable)
Over discharge voltage recovery
12.6V/25.2V (Default ,adjustable)
Load power
200W / 400W
Load voltage
16~38V / 32-76V(adjustable)
Load current
0~10A(adjustable)
Light control
yes
Time control
yes
Auto correction light on/off time based on sunrise sunset time
yes
time precision
±0.3s/day
No-load loss
≤80mA
Product Details Show
