MoreSense 5.8G 8M 10m Radar Detector Module Moving Object Detection 3M 5M For Smart Lock/Light/Home 20x20x1.6mm

1 piece
MOQ
MoreSense 5.8G 8M 10m Radar Detector Module Moving Object Detection 3M 5M For Smart Lock/Light/Home 20x20x1.6mm
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: MS58-2020D20M4-5V-G
Type: PCBA
Supplier Type: PCB Assembly Manufacturer
Copper Thickness: 1 Oz
Size: 20x20x1.6mm
Certificate: FCC RoHS CE SRRC
Frequency Range: 5.725GHz-5.875GHz
Transmit Power: -4dBm
Antenna: Built-in;Flat Antenna
Basic Infomation
Certification: FCC RoHS CE SRRC
Model Number: MS58-2020D20M4-5V-G
Payment & Shipping Terms
Packaging Details: Blister Box
Supply Ability: 2000000 Piece/Pieces per Month
Product Description
Product Description

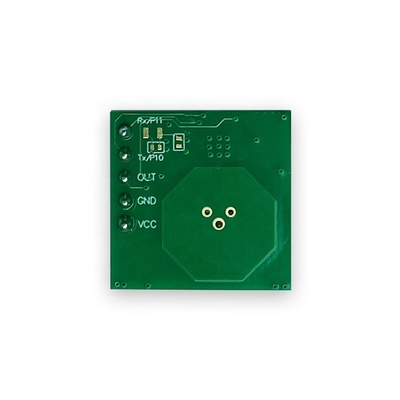

MS58-2020D20M4
Micro-Movement Detection Motion Sensor
Working Current:23mA(typical value)
Working Voltage:5V(customization as following shows)
Contact Us for Customization

MS58-2020D20M4 is a miniaturized 5.8G radar sensor module launched by MoreSense.This module uses high-performance radar sensors combined with miniaturized planar antennas to achieve a size of 20 x 20mm while ensuring the performance of the sensor.
The sensor can detect that if there have the moving objects in the region by frequent difference between the transmit and receive signals (Doppler Principle)or high-frequency electromagnetic waves.The sensor is not affected by ambient temperature,humidity,airflow,dust,noise,brightness and so on.With a built - in multi - filter algorithm,the module has a strong anti-jamming capability and its signal can penetrate glass,axle and other non-metallic materials.
The sensor can be used to detect various scenes of human being or moving target sensing,including including Smart Home,Smart Doorbell,Smart Door Lock,etc.It is especially suitable for low-power battery-powered scenes such as night lights,solar street lights and wireless cameras.
The module comes with its own default parameters and can be flexibly modified by serial port instructions or PC upper computer.

Module Parameter
Type
Parameter
Value


RF Parameter
Certification Standards
FCC/CE/SRRC/RoHS
Frequency Range
5.725GHz-5.875GHz
Transmit Power
-4dBm
Antenna
Built-in;Flat Antenna





Hardware Parameter
Data Interface
GPIO/UART
Operating Voltage
4.5-5.5V/3.0-3.6V
Operating Current
20MA/23MA(Typical Value)
Operating Temperature
-40℃- 85℃
Storage Temperature
-40℃- 150℃
Humidity
<85%
Dimension
20mm x 20mm







Default Parameter
Power-On Self-Test Time
2s
Sensing Output Level
5V/3.3V
Silent Output Level
0V
Sensing Output Time
2s
Inducting Distance
About 8m
Customizing the Largest Sensing Distance
30m
Max. Induction Radius with Hanging Height 3m
10m
Setting Parameter Method
COM or IO
Customization
Company Introduction

Our Services & Strength

Quality Guarantee-No.1 and Satisfied Customer Service-No.2
MoreSense
Shenzhen MoreSense Technology Co., Ltd. is headquartered in China(Shenzhen).The core technology R & D and management team of MoreSense set up from 2016 and these members have more than 6 years of experience in the IOT industry.MoreSense is mainly providing IOT communication and radar sensing modules in the field of smart home,intelligent lighting,intelligent home appliances,health care,smart security and access control,etc.MoreSense has cumulatively served more than 500 customers,with 1KK+/ month shipments.
Product Packaging





Package Customization:
Blister Box
Or As Customers' Requirement
FAQ
Q1: Can I have free samples?
A:Yes,3 or 5 pcs free samples can be provided.But the shipping cost and another details shall be negotiated by both sides.

Q2: Can I customize the product?
A:Our 5.8ghz microwave radar sensor module,wifi module and BLE module can be customized as your requirement.Also we support the package customization. Pls kindly tell us the related parameter requirement.

Q3. How to order?
A. Inquiry → Quotation → Negotiation → Samples → PO/PI → Mass production →Shipment → Further.

Q4. What is the lead time for samples?For mass products?
A:For existing product type,the samples's lead time is about 3 days.For customizing(dimension,component...) products,the samples lead time is 1-2 weeks as usual.For mass products,the lead time is 3-4 weeks.

Q5:What's is your business purposes?
A:Guaranteed products' quality and good customer service with reasonable price.100% customer satisfaction is trying our best to meet.
