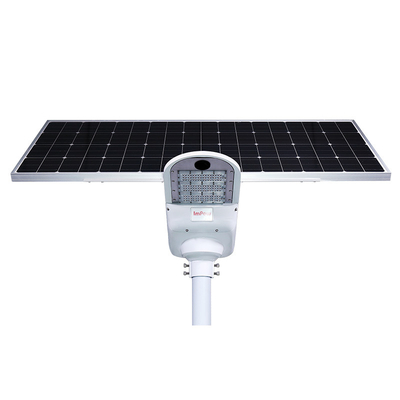

Theme Park 80W All In One 4G Smart Solar Led Cctv Outdoor Camera LED Solar Street Lights One

1.0 piece
MOQ
Theme Park 80W All In One 4G Smart Solar Led Cctv Outdoor Camera LED Solar Street Lights One
Features Gallery Product Description Request A Quote
Features
Specifications
Color Temperature(CCT): 4000K, Cool White
Lamp Luminous Efficiency(lm/w): 170
Color Rendering Index(Ra): 80
Support Dimmer: Yes
Lighting Solutions Service: Lighting And Circuitry Design, DIALux Evo Layout, Auto CAD Layout, Project Installation
Lifespan (hours): 100000
Working Time (hours): 50000
Light Source: LED
Input Voltage(V): DC12-24V Or AC-110V/220V
Lamp Luminous Flux(lm): 13600
CRI (Ra>): 80
Working Temperature(℃): -25 - 65
IP Rating: IP66
Warranty(Year): 5
Model Number: IMS-80W
Beam Angle(°): 75-140
Application: Theme Park
Color: Black, White
Item Type: Street Lights
Lamp Body Material: Aluminum Alloy
Communication Type: RJ45, Wifi/GPRS Communication
With CCTV Camera: Optional
Adjustable: Horizontal And Vertical Adjustable
Certification: CE, EMC, FCC, RoHS, Ce, FCC, RoHS
Anti Salt-Spray Test Report: Yes
Anti-corrosion Standard: ASTMG85
Basic Infomation
Certification: CE, EMC, FCC, RoHS, ce, FCC, RoHS
Model Number: IMS-80W
Payment & Shipping Terms
Packaging Details: Neutral Cartons
Supply Ability: 3000 Piece/Pieces per Month
Product Description
Specification
Parameters
Products
80w LED Solar Street Lights
Input voltage
12V/24V
Material
Aluminum
CCT
3000K/4000K/5000K/6000K
LED Chip
Samsung/Bridgelux
Temperature
-25°C ～ +65°C
Hole diameter
80mm
Warranty
3 years
Product Description

Buit in cable

The built in cable design is convenient and fashionable,prevent the cable to exposure to the rain and sun.protect the cable to aging and electricity leakage.

Horizontal Adjustable

Compare to the traditional LED solar lamp,our new design integrated solar lamp,the LED panel could accurately horizontal adjustable,regardless of the street lights installation directions.

Vertical adjustable solar panel

For different country and place,the solar radiation angle is different,the new design had take this into consideration,make the solar panel vertical adjustable by pivot point,therefore find the best angle for the solar panel and make maximum use of the sunlight.

Drop proof chain

The battery cover is open in the front of lamp,this design is for replaced the lamp battery or other accessory maintenance easily,the anti-drop nail is fasten on the cover,when the engineer do the lamp installation in the high sky,they do not need to care about the cover.

Ventilation hole

The front ventilation hole before the light sensor and the back hole in the lamp main body,make the hot air convection quickly,and it is very efficient in hot dissipation.

Model
IMS-80W
IMS-40W
IMS-15W
LED solar panel
160W DC36V
80W DC18V
50W DC18V
Solar panel size
147*67*3.5cm
68*67*3.0cm
69*52*2.5cm
LiFePo4 battery
24AH 25.6V
27AH 12.8V
15AH 12.8V

Intelligent Street  Light Control System Distribution

Working Mode Demonstration

DEMO: Test button for demonstration
OFF: shut down, do not light all the day or all the night.

Working mode:
T (Time control+Light control mode): Start from 7:00pm,
80%-1hr, 100%-3hrs, 50%-2hrs, 30% till dawn


M (Microwave mode):100% brightness when sense people or things come closer,
Remain 20% when far away.


TM (Time control+Microwave control mode):
80%-1hr, 100%-2hrs, 50%-2hrs, after 5 hrs, microwave sensor working as follows:
50% when people or things come closer, 20% when people or things far away


Remark:Default mode is M, you can choose or customized your preferred mode according to the lighting condition in your projects.

GPRS/WiFi Wireless Intelligent Control System

The street light control system adopts PLC,GPRS Zigbee wireless technology to control and monitor each lamp's turn on/turn off,dimming control,solar panel and battery's warning message,alarm for wire anomaly and failure,collect data and sent back lamp's running status.

Through the GPRS network,control center and database, we are able to check each lamp's historical and real time performance and operating the brightness of the specific solar lamp.

Concentrator

It communicates with each lamp through communication protocol to issue command collect feedback data to the center through PLC,GPRS or WIFI to accept order from control center and feedback the lamp nodes information.

Applications

 Solar Street Lights Patent Certification

Certifications
Company Information
Exhibitions
Productions shipment
FAQ

Q1. Can I have a sample order for solar led street light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 2-4 weeks.

Q3. Do you have any MOQ limit for sample order?

A: No MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to OEM for our company and print my logo on the street lights?

A: Yes. Please inform us formally before our production and confirm the logo design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 3-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
