Home /Products/All In One Solar Street Lights/Adopting peak 15mA peak 15mA solar controller 12v/24v AC/DC hybrid solar controller charger for street light dual with low MOQ

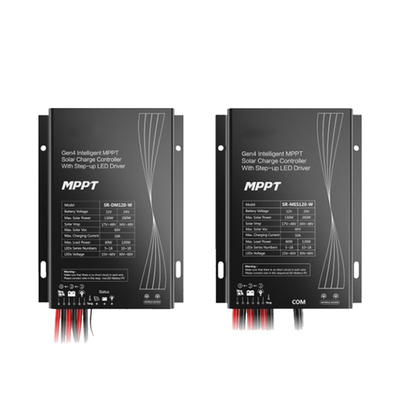

Adopting peak 15mA peak 15mA solar controller 12v/24v AC/DC hybrid solar controller charger for street light dual with low MOQ

10 pieces
MOQ
Adopting peak 15mA peak 15mA solar controller 12v/24v AC/DC hybrid solar controller charger for street light dual with low MOQ
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: BSW-SC-01
Type: MPPT
Certificate: CE/RoHS/ ISO9001
Warranty: 1 Year
Work Time (h): 50000
Product Name: IP68 20A Stair Lighting Controller
Protection Degree: IP68
Max PV Voltage: 55V, 14.6V
Max PV Power: 600W, 45W
System Voltage: 12 V/ 24 V Auto
Temperature: -4.0 Mv/°C/ 2V
Certification: CE/RoHS/ ISO9001
Control Mode: Intelligent Control
Color: Customizable
Weight: 150g
Application: Charger Controller, Wind Controller, Collector Controller, Water Heater Controller, Solar Working Station, Lighting Controller, Thermal Controller, Voltage Controller, Solar System Controller
Basic Infomation
Certification: CE/RoHS/ ISO9001, CE/RoHS/ ISO9001
Model Number: BSW-SC-01
Payment & Shipping Terms
Packaging Details: Carton
Product Description
Solar street light controller is used in solar photovoltaic systems, it is called solar charge and discharge controller, coordinates the work of solar panels, batteries, loads, is a very important component of the photovoltaic system. It makes the whole solar PV system work efficiently and safely.

Waterproof MPPT charge/discharge controller, the product integrates solar maximum power tracking MPPT charge management, load on/off type control, remote network communication and other functions in one. It is suitable for lead-acid/li-ion battery/colloid battery etc. It is widely used in solar off-grid system, caravan system, solar monitoring system, solar street light etc. It has the features of high reliability, high efficiency, high precision, simple installation and easy maintenance.
1.The design of IP68 waterproof level and aluminum shell helps effectively prevent erosion. 2.12 V/24 V system voltage. 3.LED numeric display and waterproof keys are easy to use. 4.An upgraded 3-stage PWM charging algorithm applies an equalizing charge to the battery every week, effectively preventing the battery from non-equalization and sulfuration and therefore extending the battery's service life. 5.Up to 5 load working modes facilitate the product's application to different types of road lamps and monitoring devices. 6.Charging program options are available for sealed, GEL and flooded lead-acid batteries and ternary-material lithium and lithium iron phosphate batteries. 7.An external temperature sensor helps deliver high-precision temperature compensation. 8.Parameter settings of power-down saving functions eliminate the trouble of repeated settings, making operation easy and convenient. 9.Various kinds of state indicators. 10.Overcharge, over-discharge and overload protection, as well as short-circuit and reverse-connection protection. 11.TVS lighting protection.
Product Description
BSW-Solar Street lighting Controller
Click here and we will give you more discount.
Details Images
Technology Parameter
• Advanced MPPT charging technology, 15% to 30% higher than PWM charging efficiency. • Multi-peak tracking technology, higher tracking accuracy under shading conditions. • Boosting constant current algorithm, accurate load efficiency control. • Charge with accurate constant pressure algorithm, charging ripple will be lower and the service life of lithium battery will be extended. • Historical status record. • Remote IoT function. • Available for all types of batteries. • The third generation microwave induction technology, strong anti-interference ability, long sensing distance. • Multi-stage induction setting, more flexible lighting and electric quantity control.
• Available for lead-acid battery and all types of lithium battery. • Hibernation mode, static current can be low as 1mA. • Wireless communication technology, convenient for setting parameters. • Ten-stage induction setting, more flexible lighting time and efficiency control. • Real-time monitoring over battery temperature, battery charge and discharge temperature is settable. • Latest digital constant current technology leads to less load current fluctuation. • The third generation microwave induction technology, strong anti-interference ability, long sensing distance. • Multi-stage induction setting, more flexible lighting and electric quantity control.
• Available for single-string or 2-string lithium battery application. • Hibernation mode, static current can be low as 1mA. • Wireless communication technology, convenient for setting parameters. • Ten-stage induction setting, more flexible lighting time and efficiency control. • Human body infrared and microwave induction. • Latest digital constant current technology leads to less load current fluctuation.
• Multiple types of batteries are optional. • Load normally on mode, available for 24-hour power supply load. • Flat voltage output, available for connecting to router and camera. • Waterproof rate: IP67 • Protection Functions. • Lithium battery overcharge protection.
• Advanced MPPT charging technology, 15% to 30% higher than PWM charging efficiency. • Multi-peak tracking technology, higher tracking accuracy under shading conditions. • Boosting constant current algorithm, accurate load efficiency control. • Charge with accurate constant pressure algorithm, charging ripple will be lower and the service life of lithium battery will be extended. • Historical status record. • Available for all types of batteries. • Multi-stage induction setting, more flexible lighting and electric quantity control.
Applicable place
Click here and we will give you more discount.
Product Living Room
